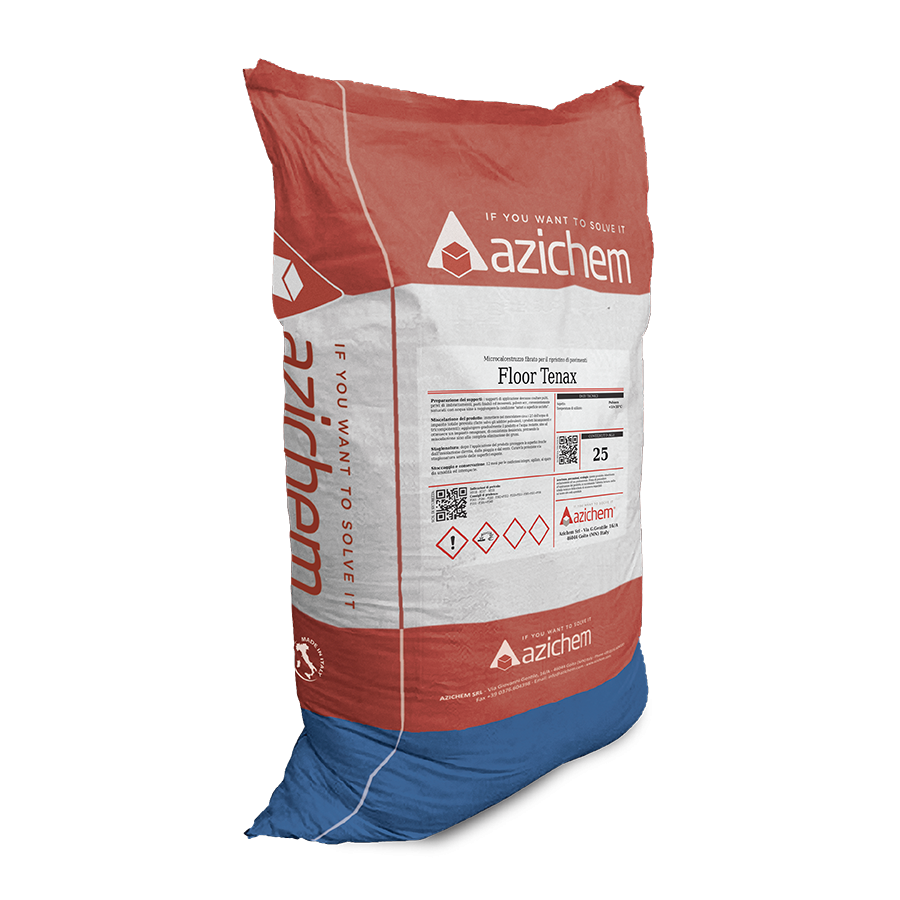

Floor Tenax

Fibre-reinforced micro-concrete for the restoration of floors

Floor Tenax is a pourable, plastic/fluid, fibre-reinforced mortar for use in repairing deteriorated concrete flooring (with a reconstruction thickness from 4 mm to 20 mm) along with structural repairs of reinforced concrete cast in formwork. The formulation contains very fine yet high-strength cements, microsilica compounds with pozzolanic activity, rational granular aggregate composition curve (0.1–1.8 mm), special additives and a substantial amount of READYMESH fibre reinforcement. The product mixes with very low water/binder ratios (<0.32). The special formulation of Floor Tenax confers mechanical strength, fracture energy, exceptional durability and very high chemical-physical resistance to the repairs performed.

Komponente

Jednokomponentna

Izgled

Prah

Carinski kod

3824 5090

Zatražite informacije o proizvodu

Dobivene certifikacije i propisi

Pripadajuće linije

Gdje se koristi

Kako se koristi

Tehnički podaci

Dodatni sadržaji

Upozorenja i mjere opreza

Mediji

Dopuštene podloge

Metode primjene

Čišćenje alata

Osnovne značajke

Max. preporučena debljina: 20 mm

Miješa se s vodom: 11 / 12.5 %

Min. preporučena debljina: 8 mm

Rok trajanja: 12 mjeseci

Temperatura na kojoj se upotrebljava: +5 / +30 °C

Tehničke specifikacije

Compressive strength after 12 hours
EN 12190

8 N/mm²

EN 12190

> 45 N/mm²

Compressive strength after 7 days
EN 12190

> 70 N/mm²

Compressive strength after 28 days
EN 12190

> 90 N/mm²

Flexural strength at 1 day
UNI EN 196/1

> 8 N/mm²

Flexural strength after 7 days
UNI EN 196/1

> 11 N/mm²

Flexural strength after 28 days
UNI EN 196/1

> 11 N/mm²

Tensile strength

4 MPa

Taber abrasion resistance expressed as weight loss in grams (H22 wheel - 1000 g - 1000 rpm)
ASTM D4060

0.28 g

Static elastic modulus
EN 13412

35000 N/mm²

Thermal conductivity

0.73 W/mK

Wear resistance
UNI EN 13892-3

0.8 cm³/50cm²

Density
UNI EN 1015-6

2250 kg/m³

Kapilarnog upijanja
UNI EN 13057

0.38 kg•h^0.5/m²

Vrijeme postavljanja/nanošenja

3 h

Čvrstoća prianjanja
UNI EN 1542

> 2.5 N/mm²

Dostupne boje

Pakiranja i dimenzije

Skladištenje i čuvanje

Čuvati proizvod u originalnom pakiranju, u dobro prozračenom i suhom prostoru, izbjegavajući mraz i izravno sunčevo svjetlo.

Dodatni sadržaji

Floor Tenax Family characteristics and selection criteria
	Floor Tenax	Floor Tenax Speedy
workability	castable mortar	castable mortar
fibers, maximum size	6 mm	6 mm
Workability time	approximately 120 minutes	approximately 40 minutes
Resistance to compression at 6 hours	0	8 MPa
Resistance to compression at 12 hours	8 MPa	20 MPa
Resistance to compression at 1 day	>35 MPa	>50 MPa
Resistance to compression at 28 days	> 95 MPa	> 95 MPa
Tensile strength	4 MPa	4 MPa

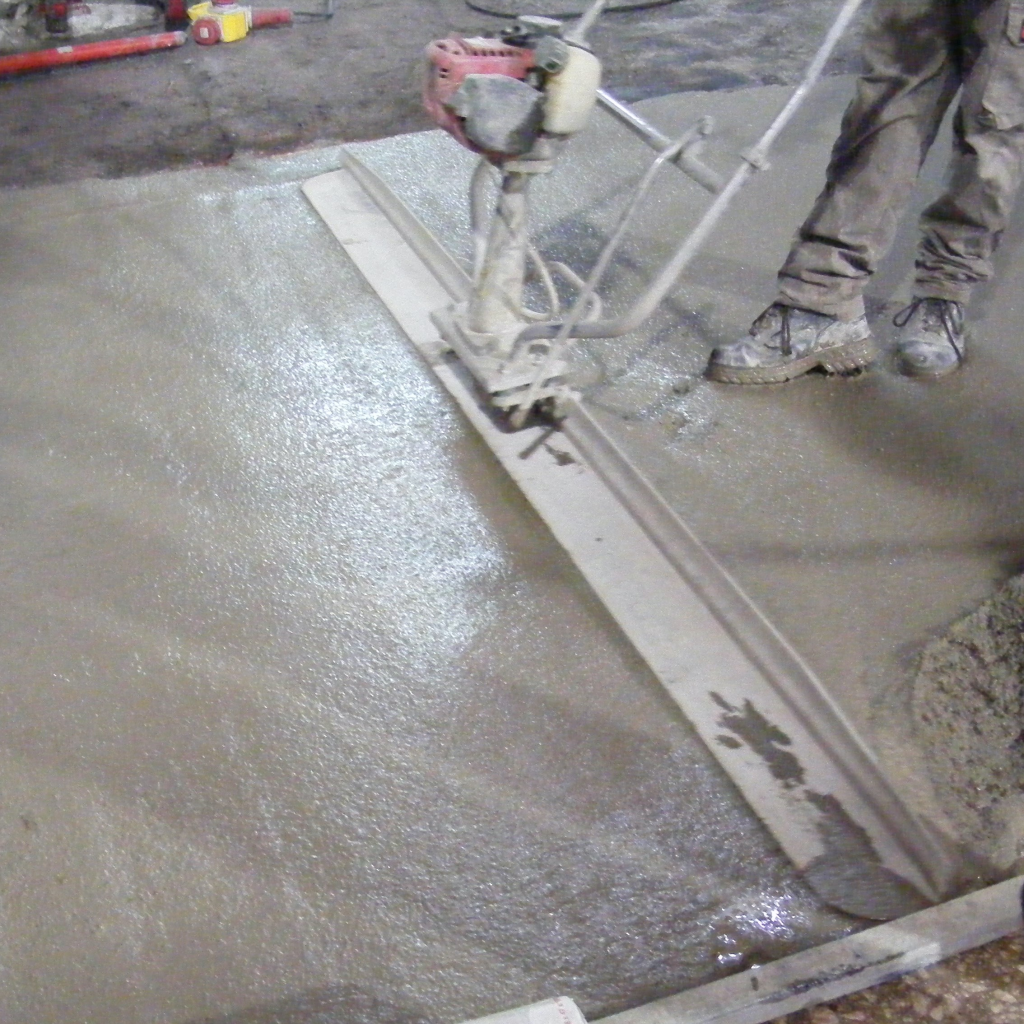

Restoration of industrial flooring: selection criteria	Thickness 10-20 mm Walkability at 12 hours approx. Light trucks at 24 hours approx. Drive over at 48 hours approx.	Thickness 10-20 mm Walkability at 6 hours approx. Light trucks at 12 hours approx. Drive over at 24 hours approx. With a team of two men, finish areas of max 12-16 square meters at a time
Restoration of industrial flooring: aesthetic performance	possible inhomogeneity of colour and light halos	possible inhomogeneity of colour and light halos
Other fields of application	Structural restorations in general with casting within formwork _ thicknesses from 15 to 30 mm	Structural restorations in general with casting within formwork _ thicknesses from 15 to 30 mm

^{Physical-mechanical values obtained at 20°C in laboratory conditions; workability and agility may vary depending on the temperatures present at the application}

Upozorenja

It is always important to carry out preliminary tests to check the appropriateness of the product, depending on specific requirements. It is recommended to treat carefully the curing of the shotcrete for a few days, through continuous flushing of water or covering the same with a length of cloth made of polyethylene (winter period) or awning in non-woven fabric impregnated with water (spring/summer).Tehnički podaci i podaci o učincima navedeni u ovom dokumentu rezultat su laboratorijskog ispitivanja provedenog u kontroliranom okruženju te mogu pokazivati znatno drugačije rezultate od onih dobivenih pod drugačijim uvjetima na terenu. Nužno je provesti prethodne testove u stvarnim uvjetima primjene.

Korisnik je obvezan provjeriti Tehničke listove sa sigurnosnim podacima i obratiti pozornost na podatke o fizikalno-kemijskim svojstvima, zatim toksikološke podatke, upozorenja i druge korisne informacije kao one o sigurnom transport, uporabi i odlaganju proizvoda i ambalaže. U tekstu se također podsjeća da se proizvod i ambalaža ni u kom slučaju ne smije odlagati u okoliš.
